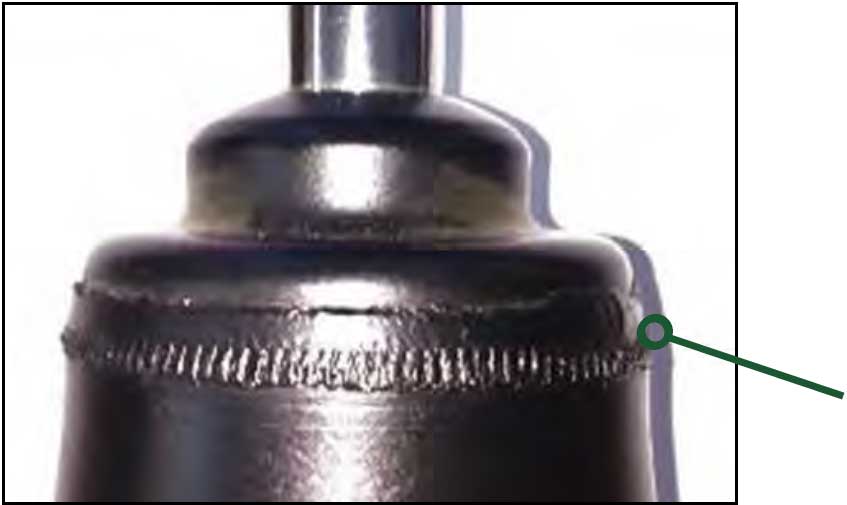

Welded Perimeter for Closing System

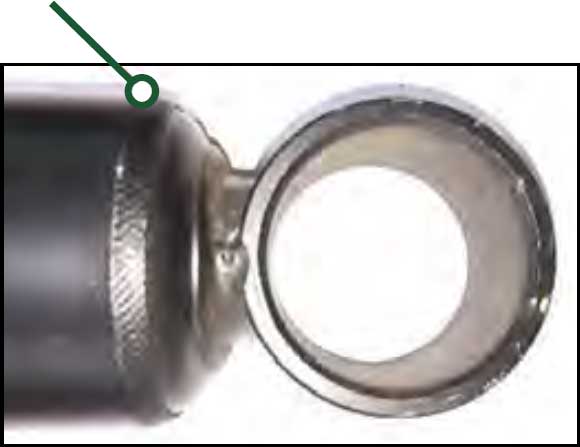

Reinforced Projection Welded Zones
8,000 lbs. maximum tensile strength of mounting
8,000 lbs. maximum tensile strength of mounting
End Cap - Outer Tube Welding
12,000 lbs. maximum tensile strength (Assembly tested under 10-15 psi air pressure submerged in water without leaks)
12,000 lbs. maximum tensile strength (Assembly tested under 10-15 psi air pressure submerged in water without leaks)

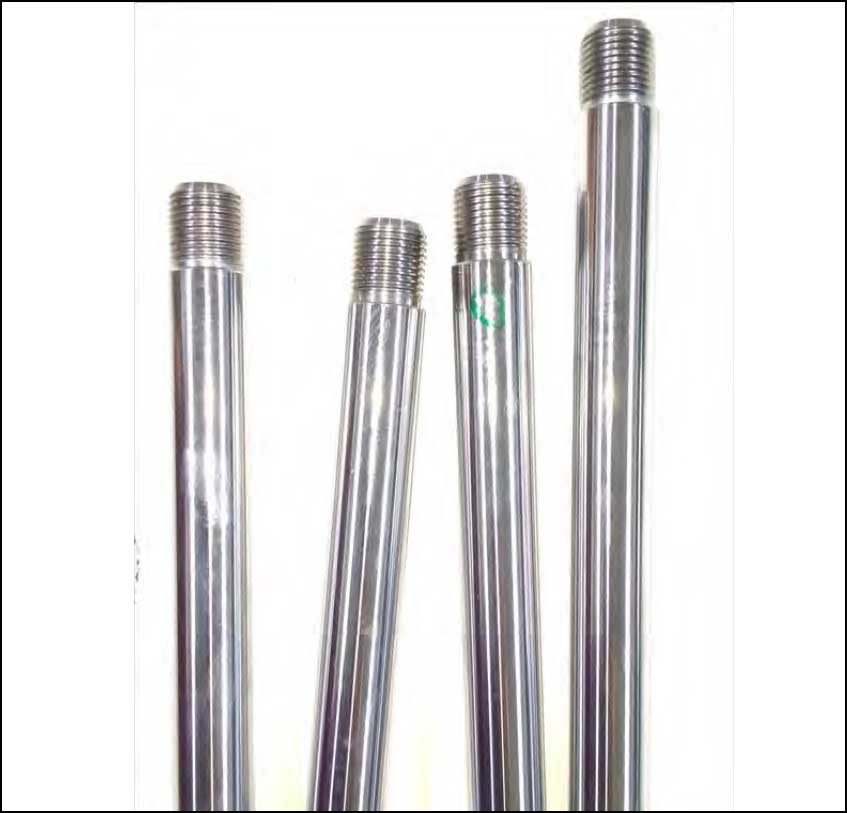

Super Chrome Piston Rods
- Temper hardness of 30-55 Rc
- Chrome plated surface hardness 67 Rc min., 0.0004" min. thickness
- Dehydrogenized at 218°C for 70 minutes
- Surface finish of Ra:6μ" and Rz:45μ"
- Salt spray test for 24 hours minimum
